Renesas Electronics America Inc

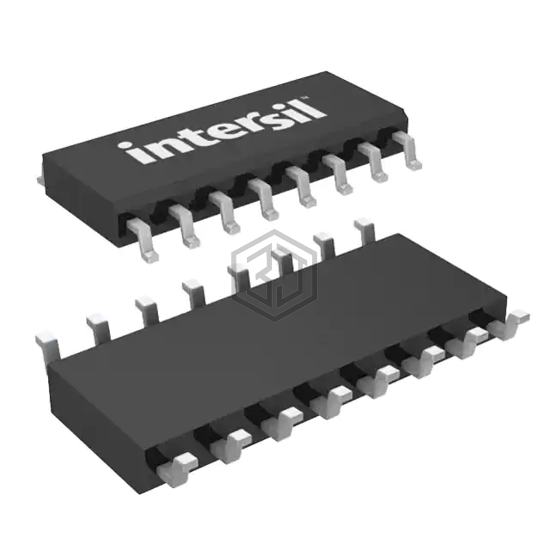

IC SWITCH QUAD SPST 16SOIC
ISL84522IBZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH QUAD SPST 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-SOIC (0.154", 3.90mm Width), number of circuits 4.
In Stock: 1,908
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | 1Ohm |
| Voltage - Supply, Single (V+) | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 80ns, 30ns |
| -3db Bandwidth | - |
| Charge Injection | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 2pF, 2pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -90dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL84522IV-T | Intersil | SPST ANALOG SWITCH, 4 FUNC, 1 CH | 100% | View |
| ISL84522IBZ-T | Renesas Electronics America Inc | IC SWITCH QUAD SPST 16SOIC | 100% | View |
| ISL84521IV-T | Renesas Electronics America Inc | IC SWITCH QUAD SPST 16TSSOP | 100% | View |
| MAX4693EGE+ | Analog Devices Inc./Maxim Integrated | LOW-VOLTAGE 8:1 MUX/DUAL 4:1 MUX | 69% | View |
| MAX4721EUA+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 8UMAX | 63% | View |
| ISL43110IBZ-T | Intersil | LOW-VOLTAGE, SINGLE SUPPLY, SPST | 61% | View |
Submit your RFQ for ISL84522IBZ and get a quote within 24 hours.
