Analog Devices Inc./Maxim Integrated
LOW-VOLTAGE 8:1 MUX/DUAL 4:1 MUX

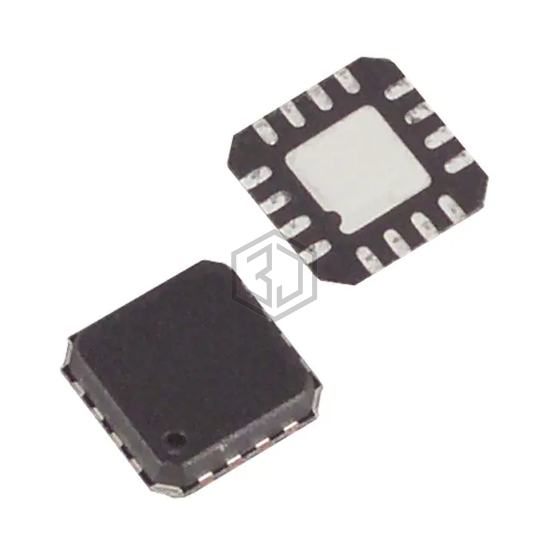

MAX4693EGE+ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. LOW-VOLTAGE 8:1 MUX/DUAL 4:1 MUX. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VQFN Exposed Pad, number of circuits 3.
In Stock: 1,851
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 3 |
| On-State Resistance (Max) | 25Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm |
| Voltage - Supply, Single (V+) | 2V ~ 11V, ±2V ~ 5.5V |
| Voltage - Supply, Dual (V±) | 2V ~ 11V, ±2V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 80ns, 50ns |
| -3db Bandwidth | - |
| Charge Injection | 1.8pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 20pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | -84dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4721EUA+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 8UMAX | 76% | View |
| ISL43110IBZ-T | Intersil | LOW-VOLTAGE, SINGLE SUPPLY, SPST | 69% | View |
| ISL84522IBZ | Renesas Electronics America Inc | IC SWITCH QUAD SPST 16SOIC | 69% | View |
| TS5A22364DGSR | Texas Instruments | IC SWITCH SPDT DUAL 10VSSOP | 53% | View |
| TS5A22364DRCR | Texas Instruments | IC SWITCH DUAL SPDT 10SON | 53% | View |
| TS5A22364YZPR | Texas Instruments | IC SWITCH DUAL SPDT 10DSBGA | 53% | View |
Submit your RFQ for MAX4693EGE+ and get a quote within 24 hours.
