Analog Devices Inc./Maxim Integrated

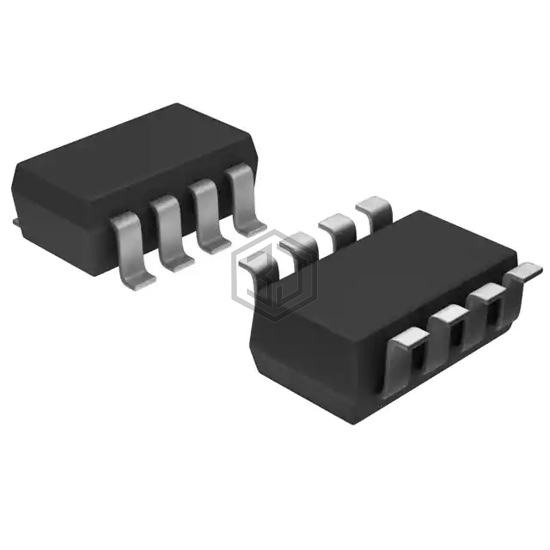

IC SWITCH DUAL SPST SOT23-8
MAX4543EKA-T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH DUAL SPST SOT23-8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SOT-23-8, number of circuits 2.
In Stock: 6,140
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 60Ohm |
| Channel-to-Channel Matching (ΔRon) | 800mOhm |
| Voltage - Supply, Single (V+) | 2.7V ~ 12V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 100ns, 75ns |
| -3db Bandwidth | - |
| Charge Injection | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 8pF, 8pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -90dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-8 |
| Supplier Device Package | SOT-23-8 |
MAX4543EKA-T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4542ESA+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 8SOIC | 100% | View |
| ISL84543IB-T | Renesas Electronics America Inc | IC SWITCH DUAL SPST 8SOIC | 100% | View |
| MAX4066ESD+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 14SOIC | 66% | View |
| ISL84516IHZ-T | Renesas Electronics America Inc | IC SWITCH SPST SOT23-5 | 62% | View |
| DG2503DB-T2-GE1 | Vishay Siliconix | IC SWITCH SPST 150 OHM 16WCSP | 57% | View |
| MAX4538ESE+T | Analog Devices Inc./Maxim Integrated | IC ANLG SWITCH SPST QUAD 16SOIC | 50% | View |
Submit your RFQ for MAX4543EKA-T and get a quote within 24 hours.
