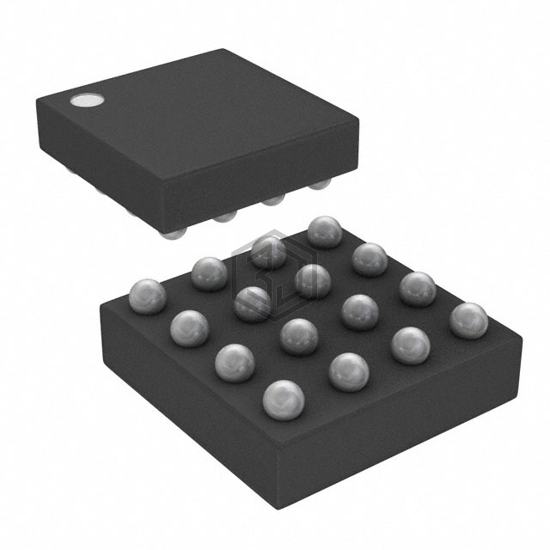

IC SWITCH SPST 150 OHM 16WCSP
DG2503DB-T2-GE1 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH SPST 150 OHM 16WCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-XFBGA, WLCSP, number of circuits 4.
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 200Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 100ns, 60ns |
| -3db Bandwidth | 550MHz |
| Charge Injection | -2pC |
| Channel Capacitance (CS(off), CD(off)) | 2.9pF, 2.8pF |
| Current - Leakage (IS(off)) (Max) | 400pA |
| Crosstalk | -83dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-XFBGA, WLCSP |
| Supplier Device Package | 16-WCSP (1.44x1.44) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4538EEE | Analog Devices Inc./Maxim Integrated | IC SW QUAD ANLG SPST 16-QSOP | 74% | View |
| MAX4538ESE+T | Analog Devices Inc./Maxim Integrated | IC ANLG SWITCH SPST QUAD 16SOIC | 74% | View |
| ISL84541IBZ | Renesas Electronics America Inc | IC SWITCH DUAL SPST 8SOIC | 57% | View |
| MAX4543EUA+ | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST DUAL 8UMAX | 57% | View |
| MAX4542ESA+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 8SOIC | 57% | View |
| ADG1308BRUZ | Analog Devices Inc. | IC MULTIPLEXER 8X1 16TSSOP | 56% | View |
Submit your RFQ for DG2503DB-T2-GE1 and get a quote within 24 hours.
