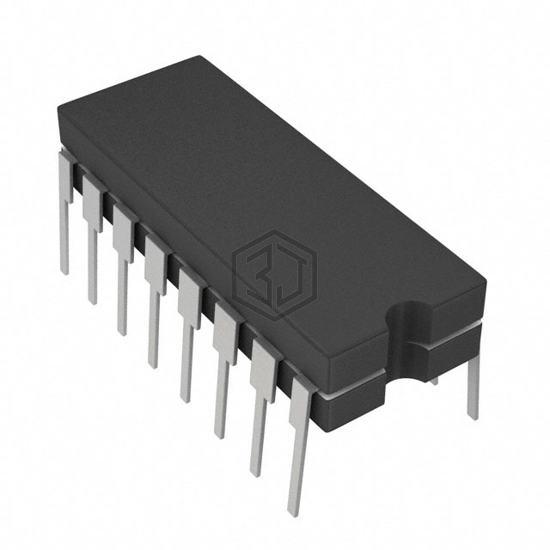

IC MUX CMOS ANLG DUAL-4CH 16-DIP
DG509ABK is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC MUX CMOS ANLG DUAL-4CH 16-DIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C (TA), package / case 16-CDIP (0.300", 7.62mm), number of circuits 2.
In Stock: 9,273
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 450Ohm |
| Channel-to-Channel Matching (ΔRon) | 27Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 1.5µs, 1µs |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP |
DG509ABK is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG527AK/883B | Harris Corporation | ANALOG LATCHABLE MUX, 8-CHANNEL | 89% | View |
| MUX28ET | Analog Devices Inc. | DUAL 8-CH ANALOG MULTIPLEXER | 85% | View |
| MUX28FPC | Analog Devices Inc. | DUAL 8-CH ANALOG MULTIPLEXER | 85% | View |
| MUX24AQ/883C | Analog Devices Inc. | DUAL 4-CH ANALOG MULTIPLEXER | 85% | View |
| IH5108MJE/883B | Harris Corporation | 8-CH FAULT PROTECTED ANALOG MUX | 78% | View |
| MUX16AT/883C | Analog Devices Inc. | 16-CH JFET ANALOG MULTIPLEXERS | 74% | View |
