Analog Devices Inc./Maxim Integrated

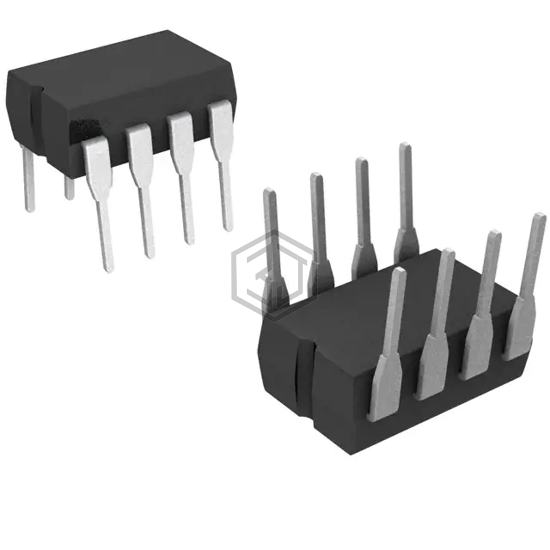

IC SWITCH SPST OCTAL 8CERDIP
DG417DK is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH SPST OCTAL 8CERDIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), package / case 8-CDIP (0.300", 7.62mm), number of circuits 8.
In Stock: 8,343
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 8 |
| On-State Resistance (Max) | 35Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 13V ~ 44V |
| Voltage - Supply, Dual (V±) | ±7V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 175ns, 145ns |
| -3db Bandwidth | - |
| Charge Injection | 3pC |
| Channel Capacitance (CS(off), CD(off)) | 8pF |
| Current - Leakage (IS(off)) (Max) | 150nA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 8-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 8-CERDIP |
DG417DK is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG412BNZ | Analog Devices Inc. | IC SWITCH QUAD SPST 16DIP | 69% | View |
| DG412DJ+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16DIP | 67% | View |
| MAX333AEPP+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPDT 20DIP | 62% | View |
| DG411DJZ | Renesas Electronics America Inc | IC SWITCH QUAD SPST 16DIP | 58% | View |
| DG413DJZ | Renesas Electronics America Inc | IC SWITCH QUAD SPST 16DIP | 58% | View |
| DG419DJ+ | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT 8DIP | 57% | View |
Submit your RFQ for DG417DK and get a quote within 24 hours.
