Renesas Electronics America Inc
IC SWITCH QUAD SPST 16DIP

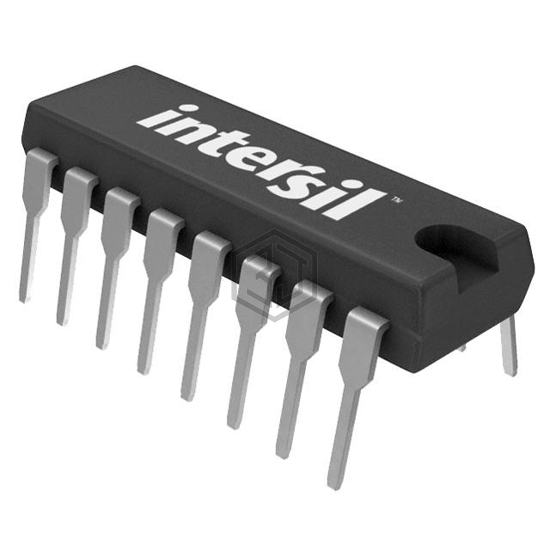

DG413DJZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH QUAD SPST 16DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), package / case 16-DIP (0.300", 7.62mm), number of circuits 4.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 35Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 5V ~ 44V |
| Voltage - Supply, Dual (V±) | ±5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 175ns, 145ns |
| -3db Bandwidth | - |
| Charge Injection | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 9pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG411DJZ | Renesas Electronics America Inc | IC SWITCH QUAD SPST 16DIP | 100% | View |
| DG413DJ-E3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-DIP | 89% | View |
| DG412AK-E3 | Vishay Siliconix | IC SWITCH QUAD SPST LV 16-DIP | 89% | View |
| DG412DJ+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16DIP | 80% | View |
| ADG412BNZ | Analog Devices Inc. | IC SWITCH QUAD SPST 16DIP | 78% | View |
| MAX333AEPP+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPDT 20DIP | 73% | View |
Submit your RFQ for DG413DJZ and get a quote within 24 hours.
