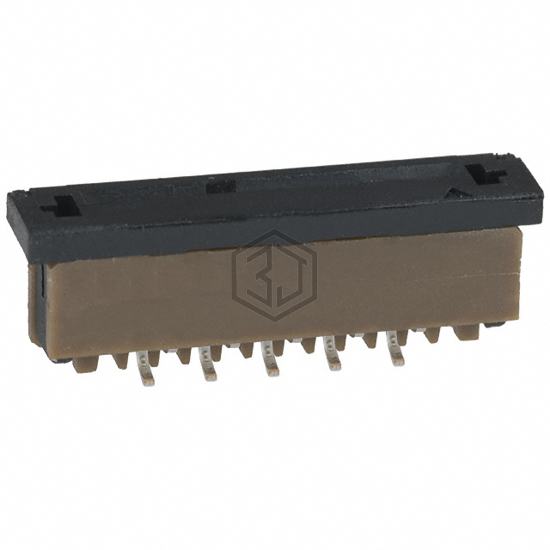

CONN FFC FPC VERT 10POS 1MM SMD
SFW10S-2STE1LF is a FFC, FPC (Flat Flexible) Connectors manufactured by Amphenol ICC (FCI). CONN FFC FPC VERT 10POS 1MM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage rating 100V, housing material Thermoplastic, Glass Filled.
In Stock: 720
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Number of Positions | 10 |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.33mm |
| Height Above Board | 0.209" (5.30mm) |
| Locking Feature | - |
| Cable End Type | - |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Thermoplastic, Glass Filled |
| Actuator Material | Thermoplastic, Glass Filled |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 100V |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for SFW10S-2STE1LF and get a quote within 24 hours.
