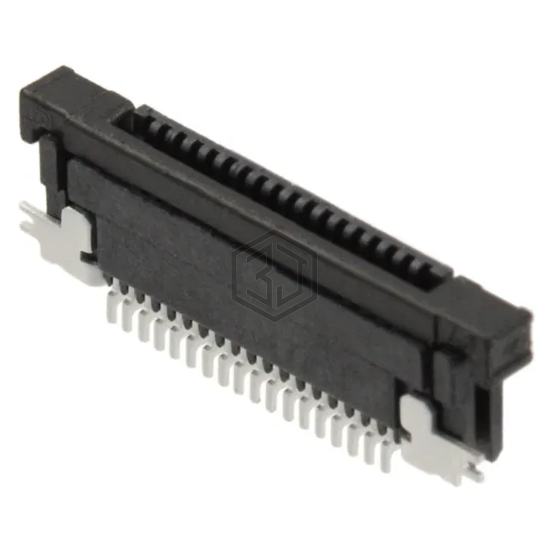

CONN FFC TOP 18POS 0.50MM R/A
SFV18R-2STE1HLF is a FFC, FPC (Flat Flexible) Connectors manufactured by Amphenol ICC (FCI). CONN FFC TOP 18POS 0.50MM R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -55°C ~ 105°C, voltage rating 50V, housing material Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free.
In Stock: 791
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top |
| Number of Positions | 18 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.071" (1.80mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Notched or Tabbed |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for SFV18R-2STE1HLF and get a quote within 24 hours.
