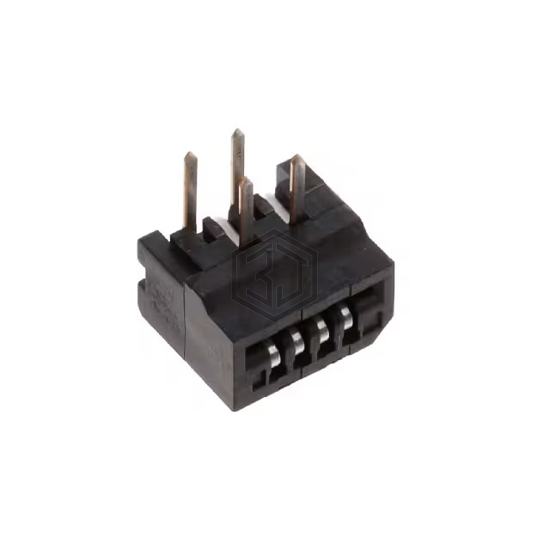

CONN FFC FPC TOP 4POS 1.00MM R/A
HLW4R-2A7LF is a FFC, FPC (Flat Flexible) Connectors manufactured by Amphenol ICC (FCI). CONN FFC FPC TOP 4POS 1.00MM R/A. Key specifications: mounting type Through Hole, Right Angle, operating temperature -55°C ~ 85°C, voltage rating 100V, housing material Polybutylene Terephthalate (PBT), Glass Filled.
In Stock: 5,979
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Through Hole, Right Angle |
| Connector/Contact Type | Contacts, Top |
| Number of Positions | 4 |
| Pitch | 0.039" (1.00mm) |
| Termination | Kinked Pin |
| FFC, FCB Thickness | 0.30mm, 0.33mm |
| Height Above Board | 0.154" (3.90mm) |
| Locking Feature | - |
| Cable End Type | Straight, Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Actuator Material | - |
| Features | - |
| Voltage Rating | 100V |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
