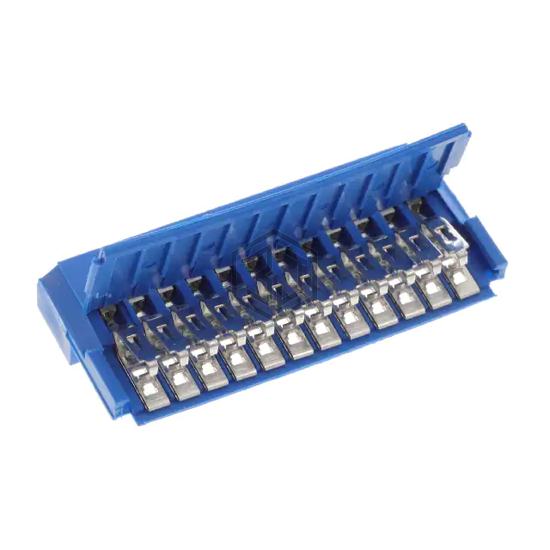

CONN FFC RCPT 12POS 2.54MM
67516-012LF is a FFC, FPC (Flat Flexible) Connectors manufactured by Amphenol ICC (FCI). CONN FFC RCPT 12POS 2.54MM. Key specifications: mounting type Free Hanging (In-Line), operating temperature -65°C ~ 105°C, voltage rating 500V, housing material Thermoplastic.
In Stock: 373
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC |
| Mounting Type | Free Hanging (In-Line) |
| Connector/Contact Type | Receptacle |
| Number of Positions | 12 |
| Pitch | 0.100" (2.54mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | - |
| Locking Feature | Flip Lock, Backlock |
| Cable End Type | Tapered |
| Contact Material | Copper Nickel Alloy |
| Contact Finish | Tin |
| Housing Material | Thermoplastic |
| Actuator Material | - |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 500V |
| Operating Temperature | -65°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 67516-012LF and get a quote within 24 hours.
