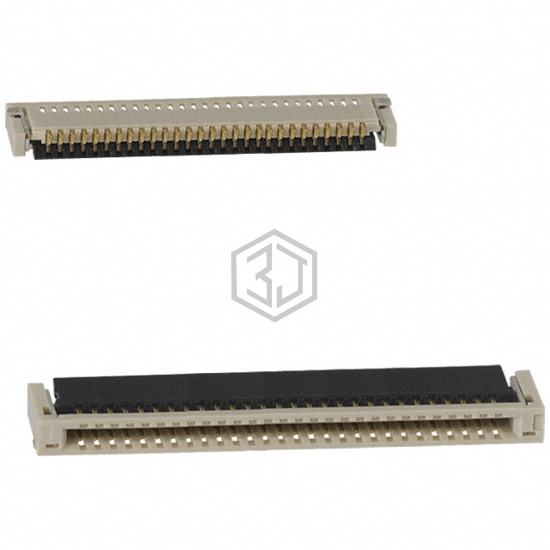

CONN FPC BOTTOM 28POS 0.50MM R/A
10051922-2810ELF is a FFC, FPC (Flat Flexible) Connectors manufactured by Amphenol ICC (FCI). CONN FPC BOTTOM 28POS 0.50MM R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -55°C ~ 85°C, voltage rating 50V, housing material Liquid Crystal Polymer (LCP), Glass Filled.
In Stock: 4,465
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 28 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.051" (1.30mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Straight |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 10051922-2810ELF and get a quote within 24 hours.
