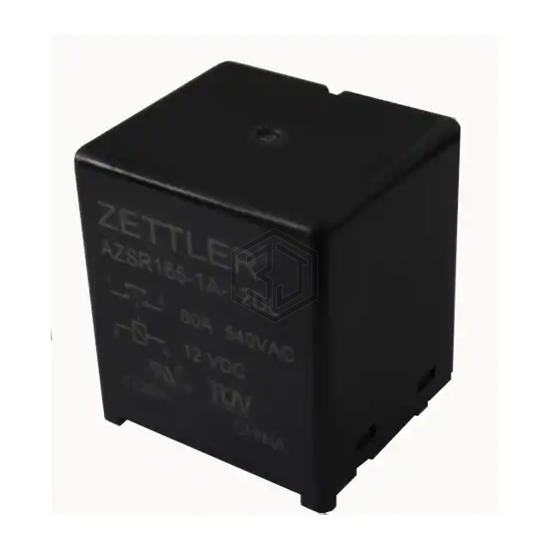

RELAY SOLAR SPST 80A 12V
AZSR165-1AE-12DL is a Power Relays, Over 2 Amps manufactured by American Zettler. RELAY SOLAR SPST 80A 12V. Key specifications: mounting type Socketable, operating temperature -40°C ~ 85°C, contact material Silver Tin Oxide (AgSnO), termination style Plug In, Quick Connect - 0.110" (2.8mm).
In Stock: 150
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 80 A |
| Switching Voltage | 690VAC - Max |
| Coil Current | 184.6 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In, Quick Connect - 0.110" (2.8mm) |
| Seal Rating | - |
| Coil Insulation | Class F |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 40 ms |
| Release Time | 20 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | Solar |
Submit your RFQ for AZSR165-1AE-12DL and get a quote within 24 hours.
