RELAY EV CHRG SOLAR DPST 40A 24V

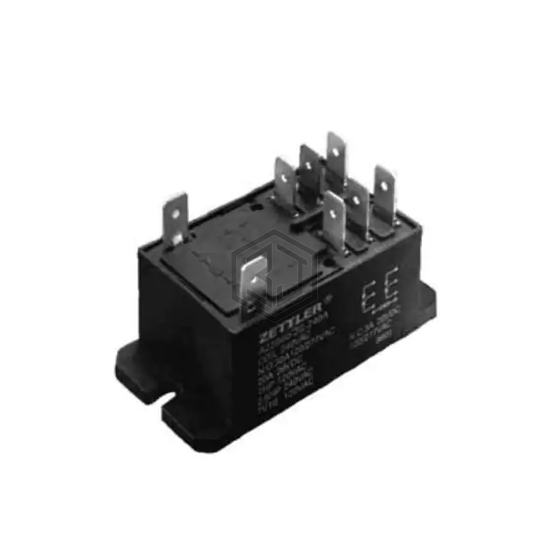

AZ2800-2A-24DE is a Power Relays, Over 2 Amps manufactured by American Zettler. RELAY EV CHRG SOLAR DPST 40A 24V. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, contact material Silver Cadmium Oxide (AgCdO), termination style Quick Connect - 0.187"/0.250".
In Stock: 79
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 24VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 40 A |
| Switching Voltage | 600VAC, 30VDC - Max |
| Coil Current | 68.5 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.187"/0.250" |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 25 ms |
| Release Time | 25 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | EV Charging, Solar |
Submit your RFQ for AZ2800-2A-24DE and get a quote within 24 hours.
