Alpha & Omega Semiconductor Inc.
30V DUAL ASYMMETRIC N-CHANNEL MO

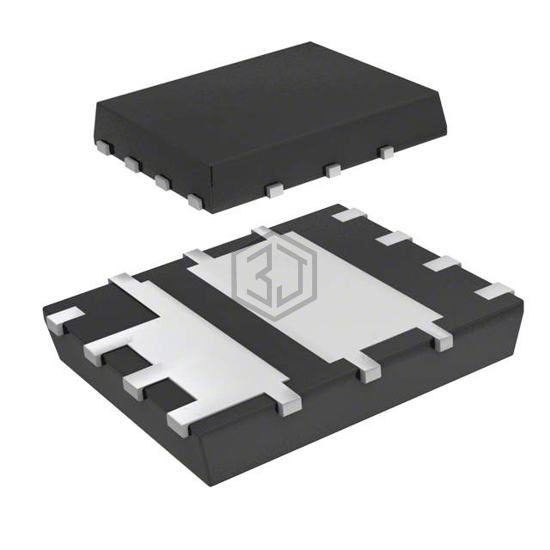

AONY36354 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. 30V DUAL ASYMMETRIC N-CHANNEL MO. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerSMD, Flat Leads, power - max 3.1W (Ta), 21W (Tc), 3.1W (Ta), 31.5W (Tc).
In Stock: 2,970
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) Asymmetrical |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 18.5A (Ta), 49A (Tc), 27A (Ta), 85A (Tc) |
| Rds On (Max) @ Id, Vgs | 5.3mOhm @ 20A, 10V, 2.6mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA, 1.9V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 20nC @ 10V, 40nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 820pF @ 15V, 1890pF @ 15V |
| Power - Max | 3.1W (Ta), 21W (Tc), 3.1W (Ta), 31.5W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerSMD, Flat Leads |
| Supplier Device Package | 8-DFN (5x6) |
Submit your RFQ for AONY36354 and get a quote within 24 hours.
