Alpha & Omega Semiconductor Inc.
25V DUAL ASYMMETRIC N-CHANNEL XS

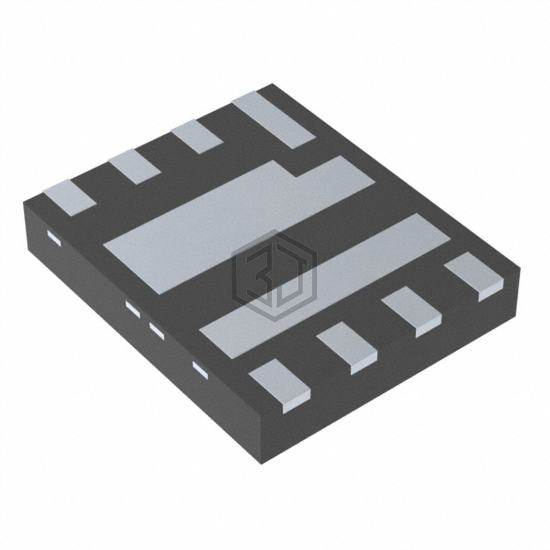

AONX38168 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. 25V DUAL ASYMMETRIC N-CHANNEL XS. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-VDFN Exposed Pad, power - max 3.1W (Ta), 20W (Tc), 3.2W (Ta), 69W (Tc).
In Stock: 2,292
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) Asymmetrical |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 25V |
| Current - Continuous Drain (Id) @ 25°C | 25A (Ta), 62A (Tc), 50A (Ta), 85A (Tc) |
| Rds On (Max) @ Id, Vgs | 3.3mOhm @ 20A, 10V, 0.8mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 1.9V @ 250µA, 1.8V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 24nC @ 10V, 85nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1.15nF @ 12.5V, 4.52nF @ 12.5V |
| Power - Max | 3.1W (Ta), 20W (Tc), 3.2W (Ta), 69W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-DFN (5x6) |
Submit your RFQ for AONX38168 and get a quote within 24 hours.
