Alpha & Omega Semiconductor Inc.
MOSFET 2N-CH 30V 17A DFN5X6

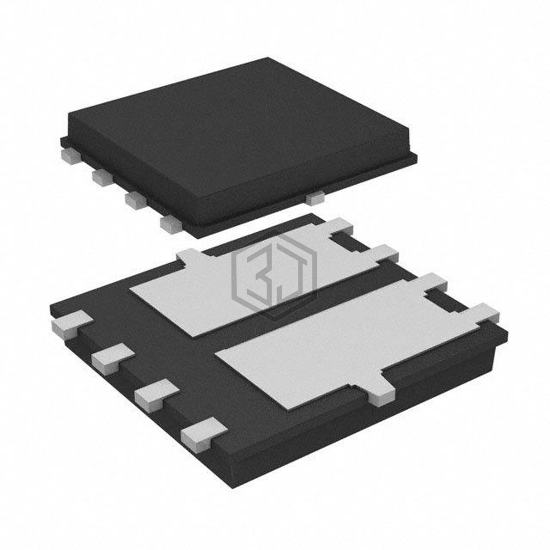

AON6816 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET 2N-CH 30V 17A DFN5X6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerSMD, Flat Leads, power - max 2.8W.
In Stock: 4,742
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) Common Drain |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 17A |
| Rds On (Max) @ Id, Vgs | 6.2mOhm @ 16A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 45nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1540pF @ 15V |
| Power - Max | 2.8W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerSMD, Flat Leads |
| Supplier Device Package | 8-DFN (5x6) |
Submit your RFQ for AON6816 and get a quote within 24 hours.
