Alpha & Omega Semiconductor Inc.

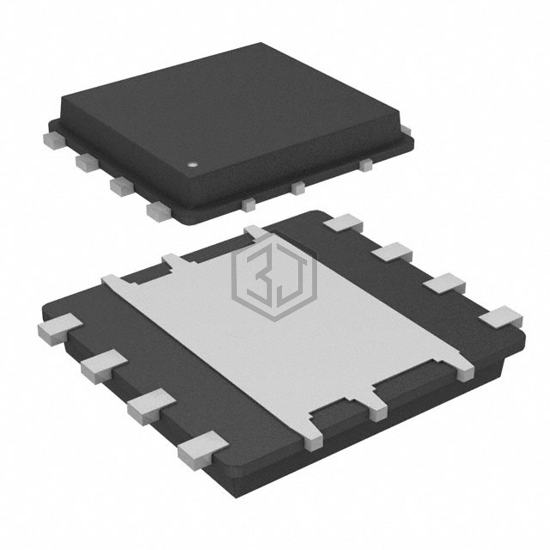

MOSFET 2N-CH 30V 25A 8-DFN
AON6810 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET 2N-CH 30V 25A 8-DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SMD, Flat Lead Exposed Pad, power - max 4.1W.
In Stock: 7,979
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) Common Drain |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 25A |
| Rds On (Max) @ Id, Vgs | 4.4mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 34nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1720pF @ 15V |
| Power - Max | 4.1W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Flat Lead Exposed Pad |
| Supplier Device Package | 8-DFN-EP (5x6) |
Submit your RFQ for AON6810 and get a quote within 24 hours.
