Alpha & Omega Semiconductor Inc.

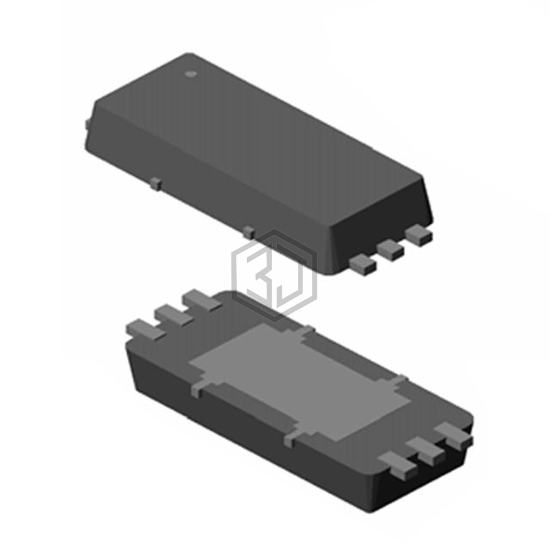

MOSFET 2N-CH 20V 10A 6DFN
AON5820 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET 2N-CH 20V 10A 6DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WFDFN Exposed Pad, power - max 1.7W.
In Stock: 3,217
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) Common Drain |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 10A |
| Rds On (Max) @ Id, Vgs | 9.5mOhm @ 10A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 15nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1510pF @ 10V |
| Power - Max | 1.7W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFDFN Exposed Pad |
| Supplier Device Package | 6-DFN-EP (2x5) |
Submit your RFQ for AON5820 and get a quote within 24 hours.
