Alpha & Omega Semiconductor Inc.

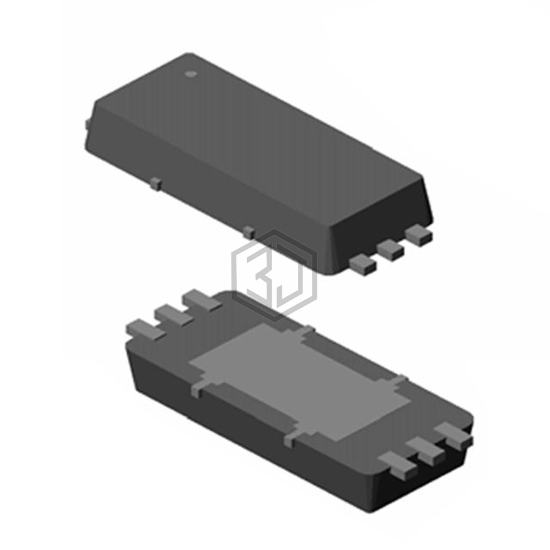

MOSFET 2 N-CHANNEL 20V 12A 6DFN
AON5816 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET 2 N-CHANNEL 20V 12A 6DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WFDFN Exposed Pad, power - max 1.7W.
In Stock: 1,202
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) Common Drain |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta) |
| Rds On (Max) @ Id, Vgs | 6.5mOhm @ 12A, 4.5V |
| Vgs(th) (Max) @ Id | 1.3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 35nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 2170pF @ 10V |
| Power - Max | 1.7W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFDFN Exposed Pad |
| Supplier Device Package | 6-DFN-EP (2x5) |
Submit your RFQ for AON5816 and get a quote within 24 hours.
