Alpha & Omega Semiconductor Inc.

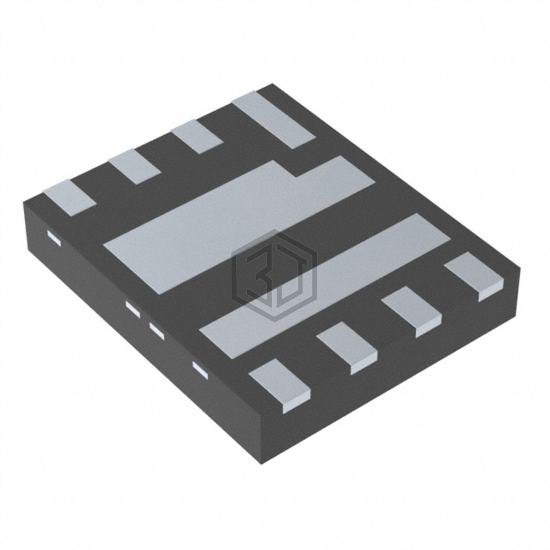

MOSFET 2 N-CH 30V 22A/85A 8DFN
AOE6930 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET 2 N-CH 30V 22A/85A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-VDFN Exposed Pad, power - max 24W, 75W.
In Stock: 4,265
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) Asymmetrical |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 22A (Tc), 85A (Tc) |
| Rds On (Max) @ Id, Vgs | 4.3mOhm @ 20A, 10V, 0.83mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA, 1.9V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 15nC @ 4.5V, 65nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1075pF @ 15V, 5560pF @ 15V |
| Power - Max | 24W, 75W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-DFN (5x6) |
Submit your RFQ for AOE6930 and get a quote within 24 hours.
