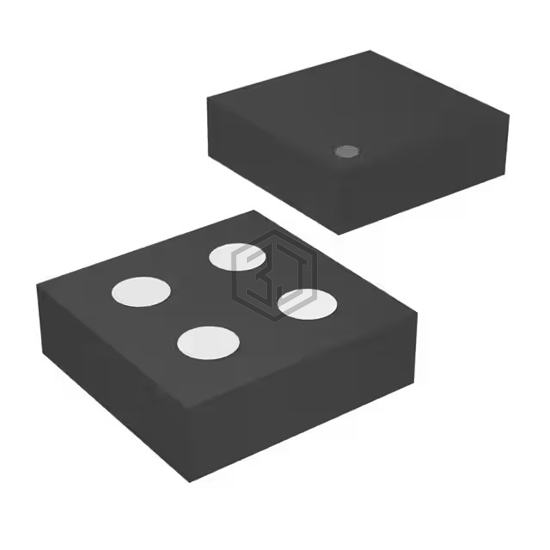

Alpha & Omega Semiconductor Inc.
20V COMMON-DRAIN DUAL N-CHANNEL
AOCA32112E is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. 20V COMMON-DRAIN DUAL N-CHANNEL. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-SMD, No Lead, power - max 1.1W (Ta).
In Stock: 4,242
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) Common Drain |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 4.5A (Ta) |
| Rds On (Max) @ Id, Vgs | 48mOhm @ 3A, 4.5V |
| Vgs(th) (Max) @ Id | 1.3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 11.5nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| Power - Max | 1.1W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | 4-AlphaDFN (0.97x0.97) |
Submit your RFQ for AOCA32112E and get a quote within 24 hours.
