Alpha & Omega Semiconductor Inc.

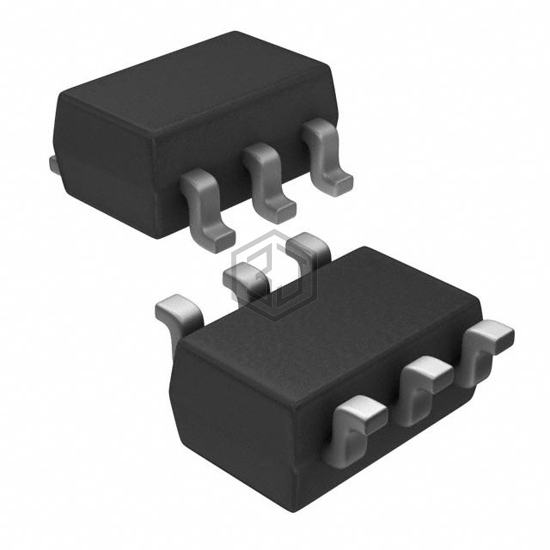

MOSFET ARRAY N/P-CH 30/20V 6TSOP
AO6608 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET ARRAY N/P-CH 30/20V 6TSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-74, SOT-457, power - max 1.25W (Ta).
In Stock: 4,244
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N and P-Channel Complementary |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 30V, 20V |
| Current - Continuous Drain (Id) @ 25°C | 3.4A (Ta), 3.3A (Ta) |
| Rds On (Max) @ Id, Vgs | 60mOhm @ 3.4A, 10V, 75mOhm @ 3.3A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA, 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 3nC @ 4.5V, 10nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 235pF @ 15V, 510pF @ 10V |
| Power - Max | 1.25W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74, SOT-457 |
| Supplier Device Package | 6-TSOP |
Submit your RFQ for AO6608 and get a quote within 24 hours.
