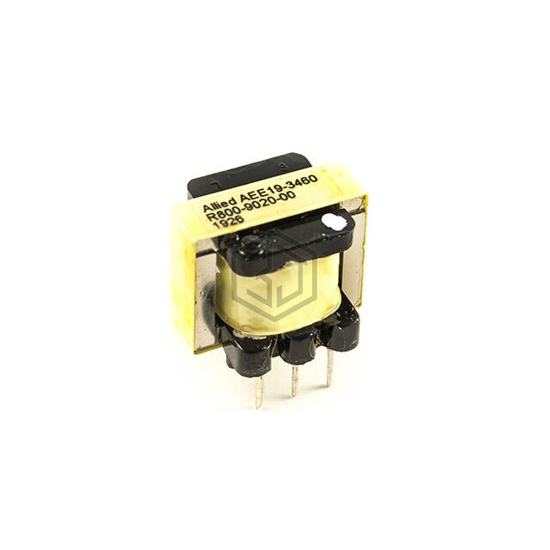

EE19 HIGH FEQUENCY TRANFORMER
AEE19-3460 is a Audio Transformers manufactured by Allied Components International. EE19 HIGH FEQUENCY TRANFORMER. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C, size / dimension 0.827" L x 0.787" W (21.00mm x 20.00mm), termination style PC Pin.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | 1:1 |
| Impedance - Primary (Ohms) | 10k |
| Impedance - Secondary (Ohms) | 10k |
| DC Resistance (DCR) - Primary | 820Ohm |
| DC Resistance (DCR) - Secondary | 1.08kOhm |
| Transformer Type | Impedance Matching |
| Frequency Range | - |
| Frequency Response | - |
| Voltage - Isolation | 1000V |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | - |
| Operating Temperature | -20°C ~ 85°C |
| Approval Agency | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.827" L x 0.787" W (21.00mm x 20.00mm) |
| Height - Seated (Max) | 0.748" (19.00mm) |
| Termination Style | PC Pin |
