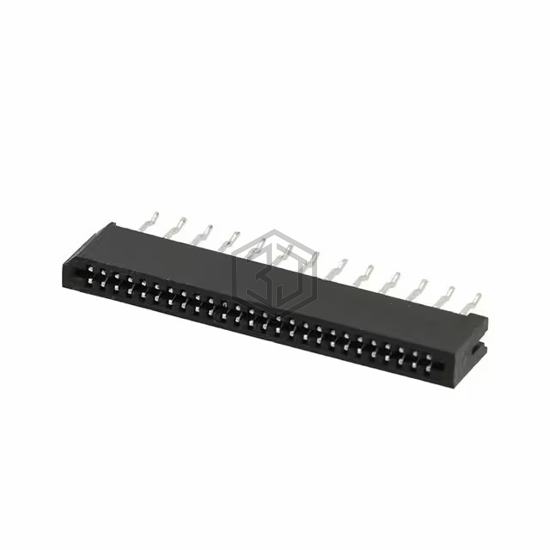

FPC/FFC CONNECTOR, LIF TYPE, 1.0
PCB-C-26-T-20 is a FFC, FPC (Flat Flexible) Connectors manufactured by Adam Tech. FPC/FFC CONNECTOR, LIF TYPE, 1.0. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C, voltage rating 50V, housing material Thermoplastic.
In Stock: 966
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Through Hole |
| Connector/Contact Type | Contacts, Vertical - 2 Sided |
| Number of Positions | 26 |
| Pitch | 0.039" (1.00mm) |
| Termination | Kinked Pin |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.217" (5.50mm) |
| Locking Feature | - |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Thermoplastic |
| Actuator Material | - |
| Features | Low Insertion Force (LIF) |
| Voltage Rating | 50V |
| Operating Temperature | -20°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for PCB-C-26-T-20 and get a quote within 24 hours.
