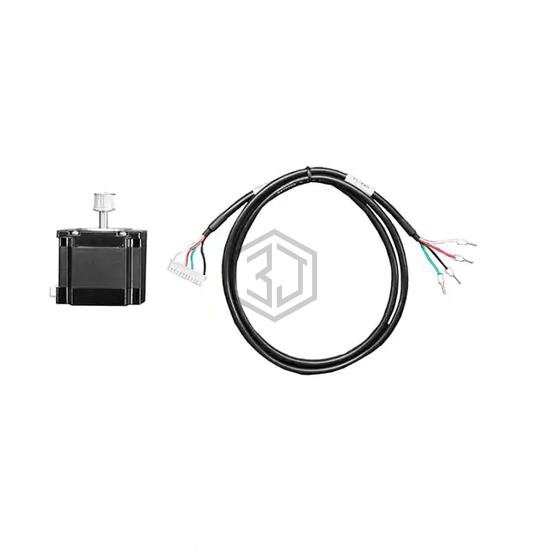

STEPPER MOTOR - NEMA-23 SIZE WIT
5117 is a Stepper Motors manufactured by Adafruit Industries LLC. STEPPER MOTOR - NEMA-23 SIZE WIT. Key specifications: operating temperature -20°C ~ 50°C, voltage - rated 2.32VDC, current rating (amps) 2.8 A, size / dimension Square - 2.220" x 2.220" (56.40mm x 56.40mm).
In Stock: 29
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid Gear Motor |
| Coil Type | Bipolar |
| Voltage - Rated | 2.32VDC |
| Current Rating (Amps) | 2.8 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 140 oz-in / 989 mNm |
| Size / Dimension | Square - 2.220" x 2.220" (56.40mm x 56.40mm) |
| NEMA Frame Size | 23 |
| Diameter - Shaft | - |
| Length - Shaft and Bearing | 1.016" (25.80mm) |
| Mounting Hole Spacing | 1.856" (47.14mm) |
| Termination Style | Connector |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | - |
| Features | - |
Submit your RFQ for 5117 and get a quote within 24 hours.
