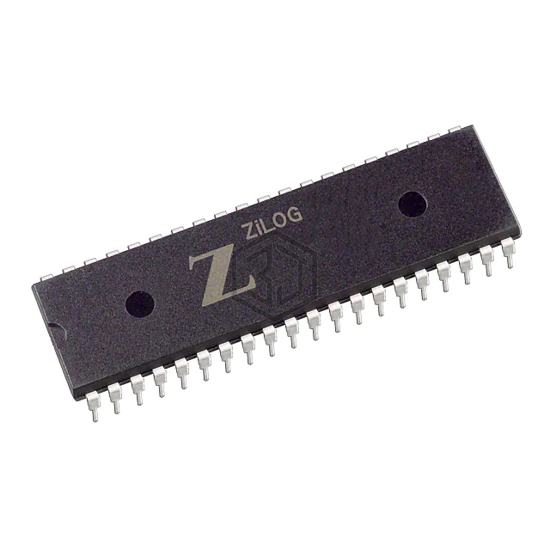

IC MCU 8BIT 4KB OTP 40DIP
Z86E1505PSG is a Embedded - Microcontrollers manufactured by Zilog. IC MCU 8BIT 4KB OTP 40DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 5.5V, package / case 40-DIP (0.620", 15.75mm).
In Stock: 4,951
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | Z8 |
| Core Size | 8-Bit |
| Speed | 5MHz |
| Connectivity | - |
| Peripherals | LED, POR, WDT |
| Number of I/O | 32 |
| Program Memory Size | 4KB (4K x 8) |
| Program Memory Type | OTP |
| EEPROM Size | - |
| RAM Size | 188 x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Data Converters | - |
| Oscillator Type | External |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 40-DIP (0.620", 15.75mm) |
| Supplier Device Package | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TMS370C742ANT | Texas Instruments | IC MCU 8BIT 8KB OTP 40DIP | 98% | View |
| TMS370C758BNMT | Texas Instruments | IC MCU 8BIT 32KB OTP 64DIP | 96% | View |
| Z8F0823PH005SG2156 | Zilog | IC MCU 8BIT 8KB FLASH 20DIP | 83% | View |
| Z8F0813PH005SG2156 | Zilog | IC MCU 8BIT 8KB FLASH 20DIP | 83% | View |
| Z8F0123PB005SG | Zilog | IC MCU 8BIT 1KB FLASH 8DIP | 71% | View |
| Z8F0813PB005SG | Zilog | IC MCU 8BIT 8KB FLASH 8DIP | 71% | View |
Submit your RFQ for Z86E1505PSG and get a quote within 24 hours.
