AC/DC CONVERTER 12V 996MW

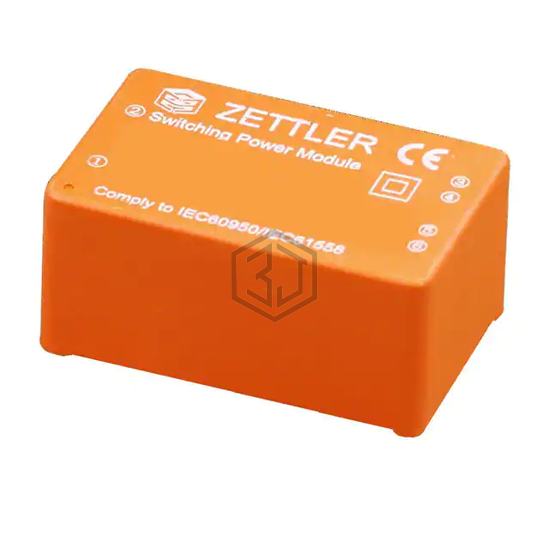

HP01S1200WI is a AC DC Converters manufactured by Zettler Magnetics. AC/DC CONVERTER 12V 996MW. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - input 85 ~ 305 VAC, 100 ~ 430 VDC, package / case 4-DIP Module.
In Stock: 21
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 305 VAC, 100 ~ 430 VDC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 83mA |
| Power (Watts) | 996 mW |
| Applications | Household Appliances, ITE (Commercial) |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Efficiency | 74% |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP Module |
| Size / Dimension | 1.33" L x 0.87" W x 0.59" H (33.7mm x 22.2mm x 15.0mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for HP01S1200WI and get a quote within 24 hours.
