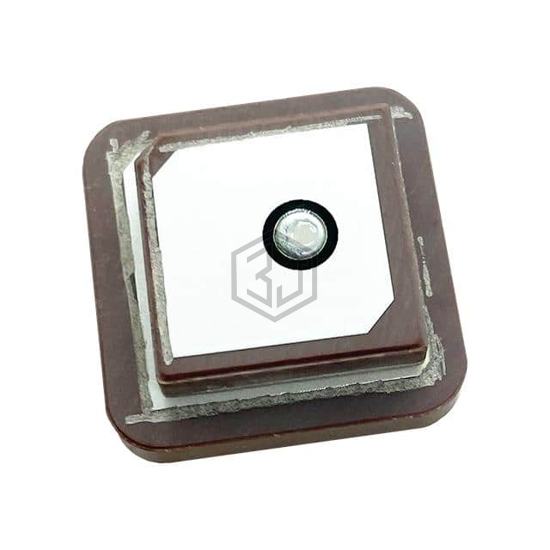

RF ANT GPS L1+L5/GLONASS/BEIDOU
ATPGGBL5R2580A is a RF Antennas manufactured by YIC. RF ANT GPS L1+L5/GLONASS/BEIDOU. Key specifications: mounting type Adhesive, termination Pin, frequency range 1.164GHz ~ 1.188GHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.591GHz ~ 1.563GHz, 1.597GHz ~ 1.607GHz.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.176GHz, 1.561GHz, 1.575GHz, 1.577GHz, 1.602GHz |
| Frequency Range | 1.164GHz ~ 1.188GHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.591GHz ~ 1.563GHz, 1.597GHz ~ 1.607GHz |
| Antenna Type | Ceramic Patch |
| Number of Bands | 5 |
| VSWR | 1.8 |
| Return Loss | - |
| Gain | 0.5dBi, 2.4dBi, 0.6dBi, 0.6dBi, 3.4dBi |
| Power - Max | - |
| Features | - |
| Termination | Pin |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.315" (8.00mm) |
| Applications | Beidou, GLONASS, GPS |
Submit your RFQ for ATPGGBL5R2580A and get a quote within 24 hours.
