Yangzhou Yangjie Electronic Technology Co.,Ltd

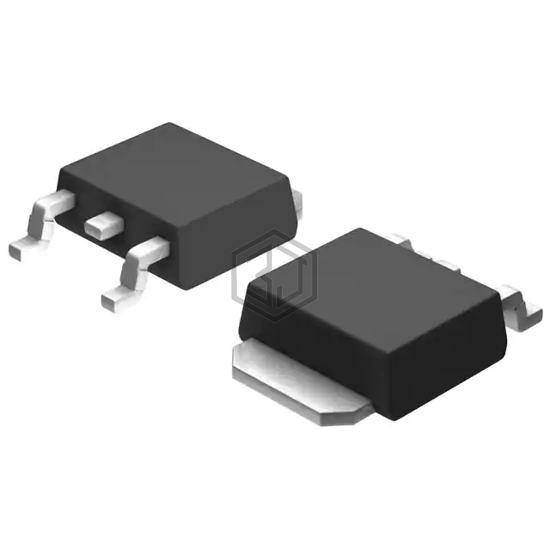

FAST DIODE 400V 10A TO-252
MUR1040CD-F1-0000HF is a Diodes - Rectifiers - Arrays manufactured by Yangzhou Yangjie Electronic Technology Co.,Ltd. FAST DIODE 400V 10A TO-252. Key specifications: mounting type Surface Mount, package / case TO-252-3, DPak (2 Leads + Tab), SC-63.
In Stock: 6,593
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Current - Average Rectified (Io) (per Diode) | 10A |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 400 V |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252 |
Submit your RFQ for MUR1040CD-F1-0000HF and get a quote within 24 hours.
