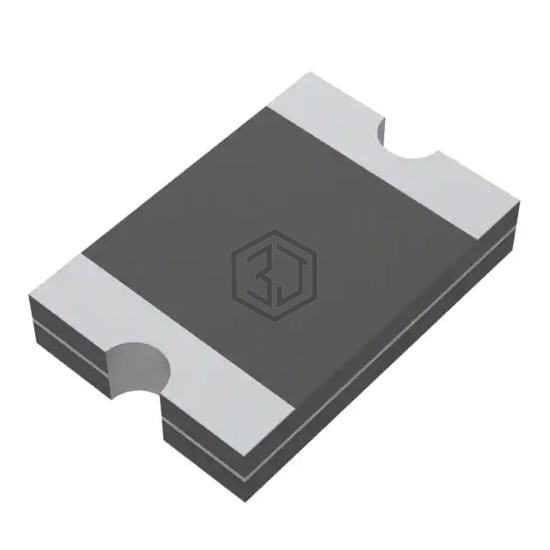

PPTC SMD 1812, 30V 0.2A, REEL 7"
SMD1812B020TF is a PTC Resettable Fuses manufactured by YAGEO. PPTC SMD 1812, 30V 0.2A, REEL 7". Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 1812 (4532 Metric), Concave, current - max 100 A.
In Stock: 2,715
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 30V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Trip (It) | 400 mA |
| Time to Trip | 20 ms |
| Resistance - Initial (Ri) (Min) | 800 mOhms |
| Resistance - Post Trip (R1) (Max) | 5 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.049" (1.25mm) |
| Lead Spacing | - |
Submit your RFQ for SMD1812B020TF and get a quote within 24 hours.
