POLYMERIC PTC RESETTABLE FUSE SU

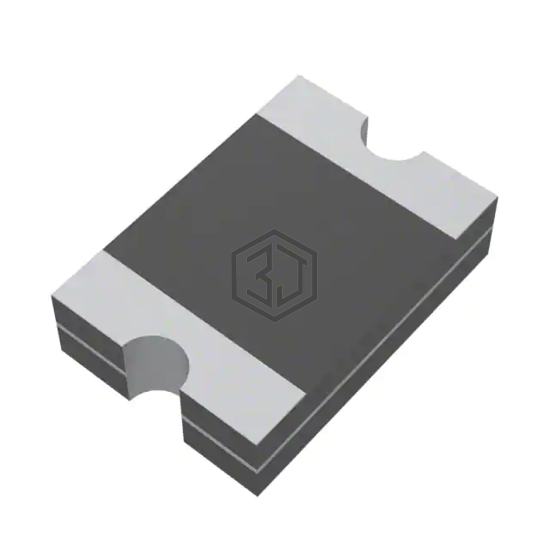

SMD1210B110TF/12 is a PTC Resettable Fuses manufactured by YAGEO. POLYMERIC PTC RESETTABLE FUSE SU. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 1210 (3225 Metric), Concave, current - max 100 A.
In Stock: 14,850
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 12V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 1.1 A |
| Current - Trip (It) | 2.2 A |
| Time to Trip | 300 ms |
| Resistance - Initial (Ri) (Min) | 50 mOhms |
| Resistance - Post Trip (R1) (Max) | 210 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric), Concave |
| Size / Dimension | 0.127" L x 0.102" W (3.22mm x 2.58mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.049" (1.25mm) |
| Lead Spacing | - |
Submit your RFQ for SMD1210B110TF/12 and get a quote within 24 hours.
