RES SMD 309 OHM 0.1% 1/8W 0805

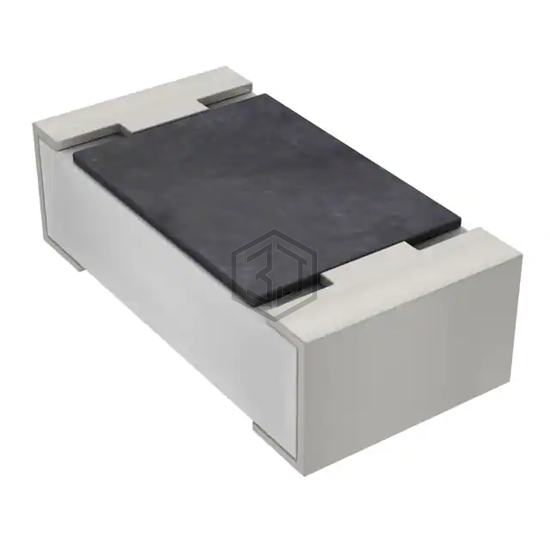

RT0805BRC07309RL is a Chip Resistor - Surface Mount manufactured by YAGEO. RES SMD 309 OHM 0.1% 1/8W 0805. Key specifications: operating temperature -55°C ~ 155°C, package / case 0805 (2012 Metric), size / dimension 0.079" L x 0.049" W (2.00mm x 1.25mm), power (watts) 0.125W, 1/8W.
In Stock: 7,491
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 309 Ohms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.125W, 1/8W |
| Composition | Thin Film |
| Features | - |
| Temperature Coefficient | ±15ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Ratings | - |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RG2012N-3090-W-T5 | Susumu | RES SMD 309 OHM 0.05% 1/8W 0805 | 100% | View |
| RG1608N-3090-P-T1 | Susumu | RES SMD 309 OHM 0.02% 1/10W 0603 | 87% | View |
| RN73R1JTTD3090A05 | KOA Speer Electronics, Inc. | RES 309 OHM 0.05% 1/10W 0603 | 87% | View |
| RNCF0603BTC309R | Stackpole Electronics Inc | RES 309 OHM 0.1% 1/10W 0603 | 84% | View |
| 6-2176091-9 | TE Connectivity Passive Product | RES SMD 309 OHM 0.1% 1/4W 0805 | 69% | View |
| RNCF1210DKE309R | Stackpole Electronics Inc | RES 309 OHM 0.5% 1/3W 1210 | 65% | View |
Submit your RFQ for RT0805BRC07309RL and get a quote within 24 hours.
