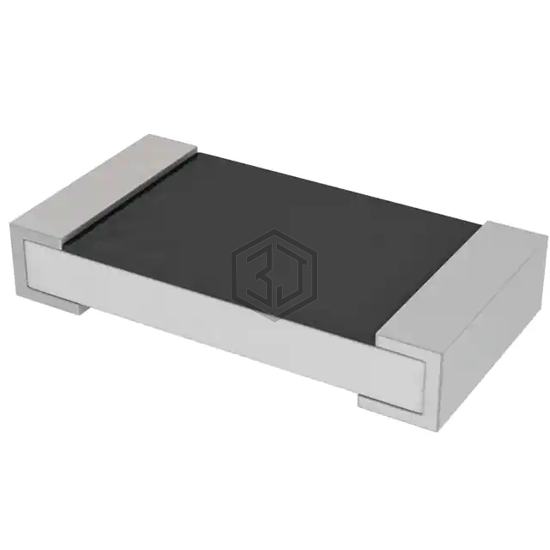

RES 0.022 OHM 5% 1/2W 1206
RL1206JR-7W0R022L is a Chip Resistor - Surface Mount manufactured by YAGEO. RES 0.022 OHM 5% 1/2W 1206. Key specifications: operating temperature -55°C ~ 125°C, package / case 1206 (3216 Metric), size / dimension 0.122" L x 0.063" W (3.10mm x 1.60mm), ratings AEC-Q200.
In Stock: 2,488
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 22 mOhms |
| Tolerance | ±5% |
| Power (Watts) | 0.5W, 1/2W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant |
| Temperature Coefficient | ±1200ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.122" L x 0.063" W (3.10mm x 1.60mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CSR1206JK22L0 | Stackpole Electronics Inc | RES 0.022 OHM 5% 1/2W 1206 | 100% | View |
| RU3216FR022CS | Samsung Electro-Mechanics | RES 0.022 OHM 1% 1/2W 1206 | 100% | View |
| HV732HTTE226G | KOA Speer Electronics, Inc. | RES 22M OHM 2% 1/2W 2010 | 95% | View |
| ERJ-L14KF22MU | Panasonic Electronic Components | RES 0.022 OHM 1% 1/3W 1210 | 82% | View |
| RK73B2HTTE226J | KOA Speer Electronics, Inc. | RES 22M OHM 5% 3/4W 2010 | 77% | View |
| RCWE121022L0FMEA | Vishay Dale | RES 0.022 OHM 1% 1W 1210 | 69% | View |
Submit your RFQ for RL1206JR-7W0R022L and get a quote within 24 hours.
