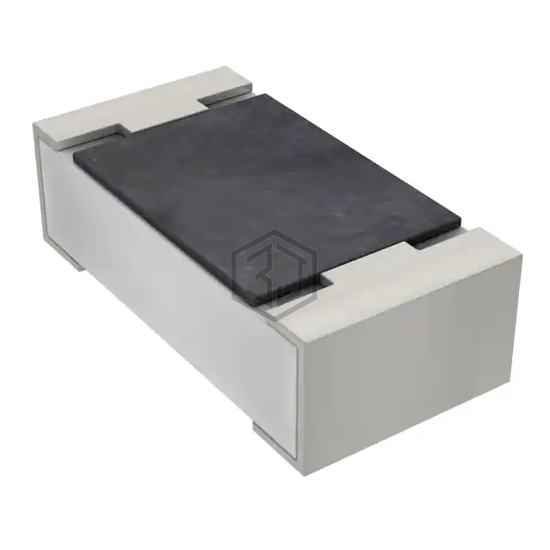

RES 560 OHM 0.5% 1/10W 0603
RC0603DR-07560RL is a Chip Resistor - Surface Mount manufactured by YAGEO. RES 560 OHM 0.5% 1/10W 0603. Key specifications: operating temperature -55°C ~ 155°C, package / case 0603 (1608 Metric), size / dimension 0.063" L x 0.031" W (1.60mm x 0.80mm), power (watts) 0.1W, 1/10W.
In Stock: 9,866
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 560 Ohms |
| Tolerance | ±0.5% |
| Power (Watts) | 0.1W, 1/10W |
| Composition | Thick Film |
| Features | Moisture Resistant |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Ratings | - |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ERJ-H3EF5600V | Panasonic Electronic Components | RES 560 OHM 1% 1/8W 0603 | 90% | View |
| RK73G2ATTD5600D | KOA Speer Electronics, Inc. | THICKFILM RESISTOR 0805 | 87% | View |
| RMCP0603FT560R | Stackpole Electronics Inc | RES, 0603, 560 OHM, 1%, 0.25W | 69% | View |
| SG73S2ATTD5600F | KOA Speer Electronics, Inc. | RES 560 OHM 1% 1/4W 0805 | 66% | View |
| ERJ-B1AJ561U | Panasonic Electronic Components | RES SMD 560 OHM 1W 2010 WIDE | 64% | View |
| RCP1206B560RGED | Vishay Dale | RES SMD 560 OHM 2% 2.4W 1206 | 63% | View |
Submit your RFQ for RC0603DR-07560RL and get a quote within 24 hours.
