RES 0.56 OHM 5% 1/4W 1206

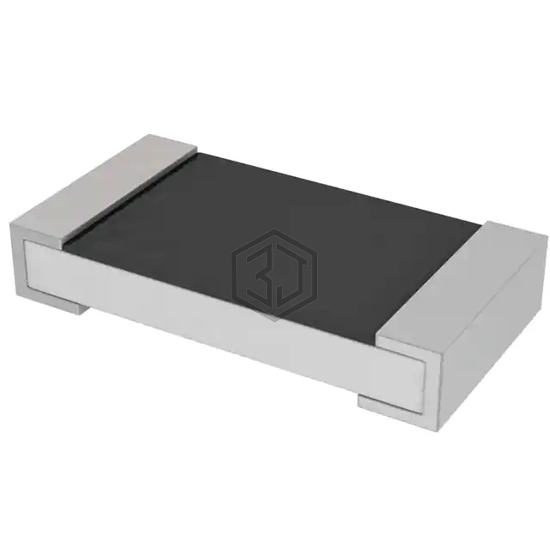

PT1206JR-070R56L is a Chip Resistor - Surface Mount manufactured by YAGEO. RES 0.56 OHM 5% 1/4W 1206. Key specifications: operating temperature -55°C ~ 155°C, package / case 1206 (3216 Metric), size / dimension 0.122" L x 0.063" W (3.10mm x 1.60mm), ratings AEC-Q200.
In Stock: 6,120
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 560 mOhms |
| Tolerance | ±5% |
| Power (Watts) | 0.25W, 1/4W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant |
| Temperature Coefficient | ±75ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.122" L x 0.063" W (3.10mm x 1.60mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RCWL1206R560JNEA | Vishay Dale | RES 0.56 OHM 5% 1/4W 1206 | 100% | View |
| RMCF1206JTR560 | Stackpole Electronics Inc | RES 0.56 OHM 5% 1/4W 1206 | 100% | View |
| FRL1206JR560TS | Fosan | CHIP RESISTORS | 100% | View |
| RLC16KR560FTP | Kamaya Inc. | RES 0.56 OHM 1/4W 1% 0603 | 93% | View |
| SR731JRTTDR56G | KOA Speer Electronics, Inc. | RES 560M OHM 2% 1/5W 0603 | 83% | View |
| RL73K2ER56JTD | TE Connectivity Passive Product | RES 0.56 OHM 5% 1/2W 1210 | 69% | View |
Submit your RFQ for PT1206JR-070R56L and get a quote within 24 hours.
