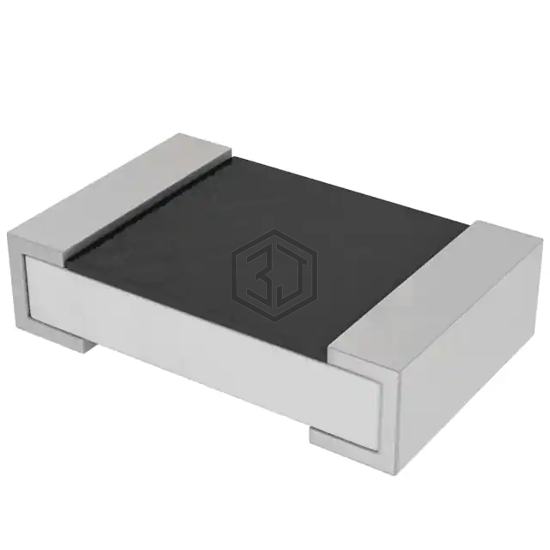

RES 0.56 OHM 1% 1/8W 0805
PT0805FR-070R56L is a Chip Resistor - Surface Mount manufactured by YAGEO. RES 0.56 OHM 1% 1/8W 0805. Key specifications: operating temperature -55°C ~ 155°C, package / case 0805 (2012 Metric), size / dimension 0.079" L x 0.049" W (2.00mm x 1.25mm), ratings AEC-Q200.
In Stock: 1,410
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 560 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.125W, 1/8W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ERJ-U6QFR56V | Panasonic Electronic Components | RES 0.56 OHM 1% 1/4W 0805 | 69% | View |
| RCWE0612R560FKEA | Vishay Dale | RES 0.56 OHM 1% 1W 0612 | 67% | View |
| RLC16KR560FTP | Kamaya Inc. | RES 0.56 OHM 1/4W 1% 0603 | 66% | View |
| CSR1225JKR560 | Stackpole Electronics Inc | RES 0.56 OHM 5% 3W 2512 WIDE | 65% | View |
| SR732ERTTDR56G | KOA Speer Electronics, Inc. | RES 560M OHM 2% 1/2W 1210 | 65% | View |
| 73WL4R560F | CTS Resistor Products | RES 0.56 OHM 1% 3/4W 1206 WIDE | 65% | View |
Submit your RFQ for PT0805FR-070R56L and get a quote within 24 hours.
