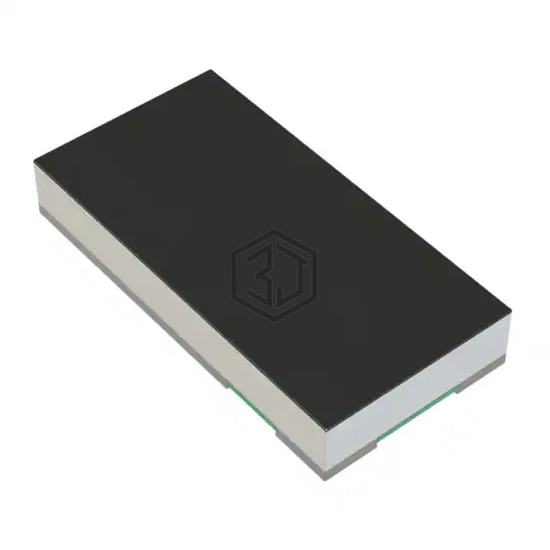

RES 0.01 OHM 0.5% 1/2W 0603
PS0306DRF7T0R01L is a Chip Resistor - Surface Mount manufactured by YAGEO. RES 0.01 OHM 0.5% 1/2W 0603. Key specifications: operating temperature -55°C ~ 125°C, package / case Wide 0603 (1608 Metric), 0306, size / dimension 0.063" L x 0.031" W (1.60mm x 0.80mm), power (watts) 0.5W, 1/2W.
In Stock: 2,374
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 10 mOhms |
| Tolerance | ±0.5% |
| Power (Watts) | 0.5W, 1/2W |
| Composition | Metal Element |
| Features | Current Sense |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | Wide 0603 (1608 Metric), 0306 |
| Supplier Device Package | 0306 |
| Ratings | - |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Number of Terminations | 4 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CSS0805JT10L0 | Stackpole Electronics Inc | RES SHUNT, 0805, 0.01 OHM, 5%, 0 | 84% | View |
| WSL1206R0100FEK18 | Vishay Dale | RES 0.01 OHM 1% 1/2W 1206 | 80% | View |
| WSL1206R0100FTB18 | Vishay Dale | RES 0.01 OHM 1% 1/2W 1206 | 80% | View |
| WSLP0603R0100FEB | Vishay Dale | RES 0.01 OHM 1% 0.4W 0603 | 77% | View |
| CSM0603JT10L0 | Stackpole Electronics Inc | RES 0.01 OHM 5% 1/3W 0603 | 69% | View |
| WSL0603R0100FEA | Vishay Dale | RES 0.01 OHM 1% 1/10W 0603 | 56% | View |
