RES 0.022 OHM 0.5% 1/2W 1206

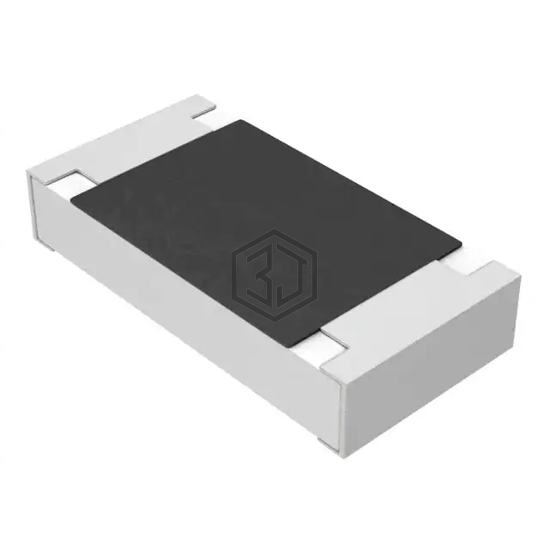

PE1206DRF7W0R022L is a Chip Resistor - Surface Mount manufactured by YAGEO. RES 0.022 OHM 0.5% 1/2W 1206. Key specifications: operating temperature -55°C ~ 170°C, package / case 1206 (3216 Metric), size / dimension 0.126" L x 0.063" W (3.20mm x 1.60mm), ratings AEC-Q200.
In Stock: 7,669
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 22 mOhms |
| Tolerance | ±0.5% |
| Power (Watts) | 0.5W, 1/2W |
| Composition | Metal Foil |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 170°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.035" (0.89mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PE0805FRM470R022L | YAGEO | RES 0.022 OHM 1% 1/2W 0805 | 96% | View |
| WFC0805R0240FE66 | Vishay Dale | RES 0.024 OHM 0.5 W 1% 0805 SMD | 91% | View |
| PE0603FRM470R022L | YAGEO | RES 0.022 OHM 1% 0.4W 0603 | 83% | View |
| PE2010FKF7W0R022L | YAGEO | RES 0.022 OHM 1% 1W 2010 | 64% | View |
| CSRF1206JT24L0 | Stackpole Electronics Inc | RES 0.024 OHM 5% 1W 1206 | 64% | View |
| PE2512DKE070R022L | YAGEO | RES 0.022 OHM 0.5% 1W 2512 | 62% | View |
Submit your RFQ for PE1206DRF7W0R022L and get a quote within 24 hours.
