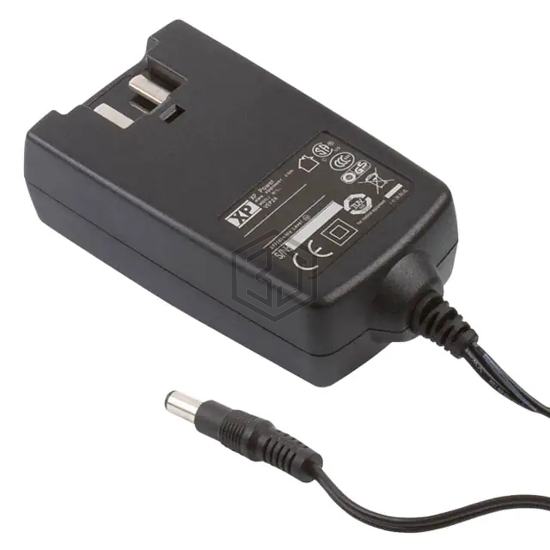

AC/DC WALL MOUNT ADAPTER 24V 24W
VEP24US24 is a AC DC Desktop, Wall Adapters manufactured by XP Power. AC/DC WALL MOUNT ADAPTER 24V 24W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 80 ~ 264 VAC, current - output (max) 1A, size / dimension 3.46" L x 1.89" W x 1.14" H (88.0mm x 47.9mm x 29.0mm).
In Stock: 5,486
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Region Utilized | International |
| Form | Wall Mount (Class II) |
| Input Type | Multi-Blade (Sold Separately) |
| Voltage - Input | 80 ~ 264 VAC |
| Voltage - Output | 24V |
| Current - Output (Max) | 1A |
| Power (Watts) | 24 W |
| No Load Power Consumption | 300mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial), Medical |
| Efficiency | Level IV |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm |
| Cord Length | 59" (1.50m) |
| Input Connector | Multi-Blade |
| Features | - |
| Size / Dimension | 3.46" L x 1.89" W x 1.14" H (88.0mm x 47.9mm x 29.0mm) |
| Approval Agency | CB, TUV, UL |
| Standard Number | 60601-1; 62368-1 |
Submit your RFQ for VEP24US24 and get a quote within 24 hours.
