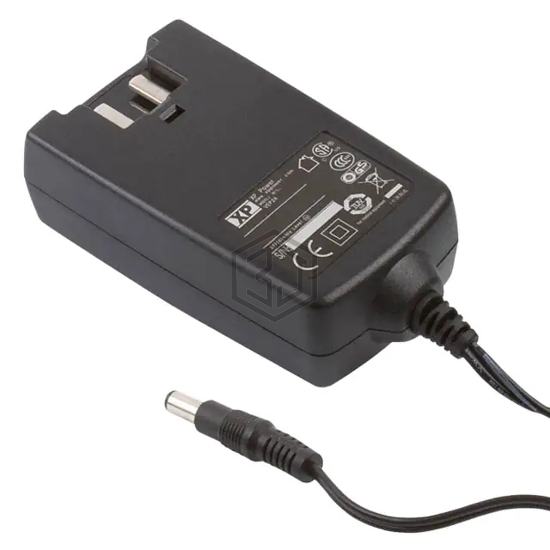

VEP24US09 - XP Power - AC DC Desktop, Wall Adapters

VEP24US09

XP Power

AC/DC WALL MOUNT ADAPTER 9V 20W

VEP24US09 is a AC DC Desktop, Wall Adapters manufactured by XP Power. AC/DC WALL MOUNT ADAPTER 9V 20W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 80 ~ 264 VAC, current - output (max) 2.2A, size / dimension 3.46" L x 1.89" W x 1.14" H (88.0mm x 47.9mm x 29.0mm).

In Stock: 9,638

Product Attributes

AttributeValue
Product StatusDiscontinued at Digi-Key
Region UtilizedInternational
FormWall Mount (Class II)
Input TypeMulti-Blade (Sold Separately)
Voltage - Input80 ~ 264 VAC
Voltage - Output9V
Current - Output (Max)2.2A
Power (Watts)20 W
No Load Power Consumption300mW (Max)
PolarizationPositive Center
ApplicationsITE (Commercial), Medical
EfficiencyLevel IV
Operating Temperature0°C ~ 40°C
Output ConnectorBarrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Cord Length59" (1.50m)
Input ConnectorMulti-Blade
Features-
Size / Dimension3.46" L x 1.89" W x 1.14" H (88.0mm x 47.9mm x 29.0mm)
Approval AgencyCB, TUV, UL
Standard Number60601-1; 62368-1

Frequently Asked Questions

VEP24US09 is a AC DC Desktop, Wall Adapters manufactured by XP Power. AC/DC WALL MOUNT ADAPTER 9V 20W

The operating temperature range of VEP24US09 is 0°C ~ 40°C.

The supply voltage of VEP24US09 is 80 ~ 264 VAC.

The current rating of VEP24US09 is 2.2A.

The efficiency of VEP24US09 is Level IV.
