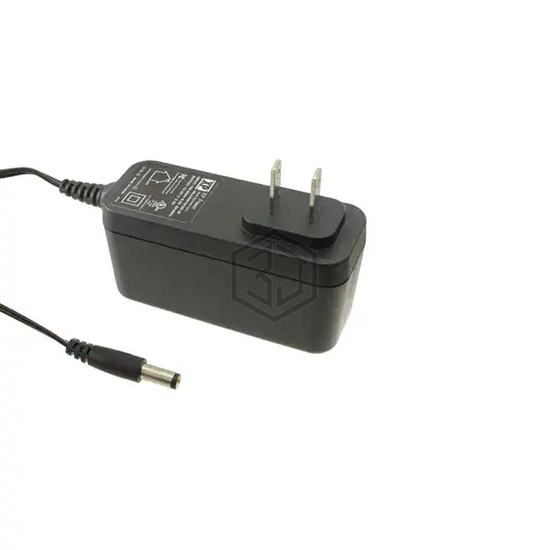

AC/DC WALL MOUNT ADAPTER 12V 24W
VEL24US120-US-JA is a AC DC Desktop, Wall Adapters manufactured by XP Power. AC/DC WALL MOUNT ADAPTER 12V 24W. Key specifications: operating temperature 0°C ~ 50°C, voltage - input 90 ~ 264 VAC, current - output (max) 2A, size / dimension 3.54" L x 1.34" W x 1.87" H (90.0mm x 34.0mm x 47.5mm).
In Stock: 212
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | North America |
| Form | Wall Mount (Class II) |
| Input Type | Fixed Blade |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 12V |
| Current - Output (Max) | 2A |
| Power (Watts) | 24 W |
| No Load Power Consumption | 100mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI, CoC Tier 2 |
| Operating Temperature | 0°C ~ 50°C |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm |
| Cord Length | 59" (1.50m) |
| Input Connector | NEMA 1-15P |
| Features | - |
| Size / Dimension | 3.54" L x 1.34" W x 1.87" H (90.0mm x 34.0mm x 47.5mm) |
| Approval Agency | CB, TUV, UL |
| Standard Number | 62368-1 |
