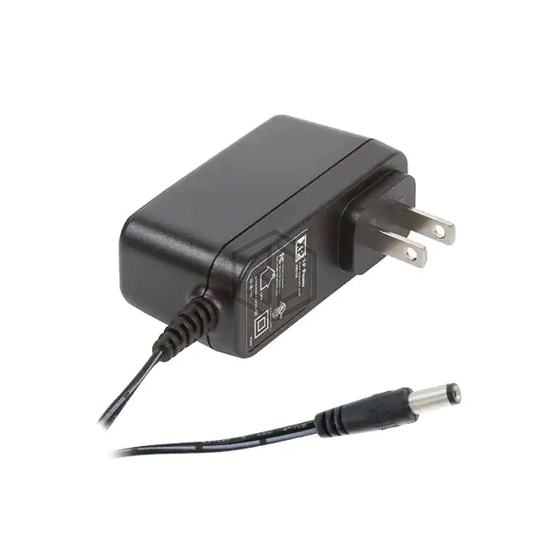

VEL12US120-US-JA - XP Power - AC DC Desktop, Wall Adapters

VEL12US120-US-JA

XP Power

AC/DC WALL MOUNT ADAPTER 12V 12W

VEL12US120-US-JA is a AC DC Desktop, Wall Adapters manufactured by XP Power. AC/DC WALL MOUNT ADAPTER 12V 12W. Key specifications: operating temperature 0°C ~ 60°C, voltage - input 90 ~ 264 VAC, current - output (max) 1A, size / dimension 2.99" L x 1.16" W x 1.73" H (76.0mm x 29.5mm x 43.9mm).

In Stock: 1,856

Product Attributes

AttributeValue
Product StatusActive
Region UtilizedNorth America
FormWall Mount (Class II)
Input TypeFixed Blade
Voltage - Input90 ~ 264 VAC
Voltage - Output12V
Current - Output (Max)1A
Power (Watts)12 W
No Load Power Consumption100mW (Max)
PolarizationPositive Center
ApplicationsITE (Commercial)
EfficiencyLevel VI, CoC Tier 2
Operating Temperature0°C ~ 60°C
Output ConnectorBarrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm
Cord Length59" (1.50m)
Input ConnectorNEMA 1-15P
Features-
Size / Dimension2.99" L x 1.16" W x 1.73" H (76.0mm x 29.5mm x 43.9mm)
Approval AgencyCB, TUV, UL
Standard Number62368-1

Frequently Asked Questions

VEL12US120-US-JA is a AC DC Desktop, Wall Adapters manufactured by XP Power. AC/DC WALL MOUNT ADAPTER 12V 12W

The operating temperature range of VEL12US120-US-JA is 0°C ~ 60°C.

The supply voltage of VEL12US120-US-JA is 90 ~ 264 VAC.

The current rating of VEL12US120-US-JA is 1A.

The efficiency of VEL12US120-US-JA is Level VI, CoC Tier 2.
