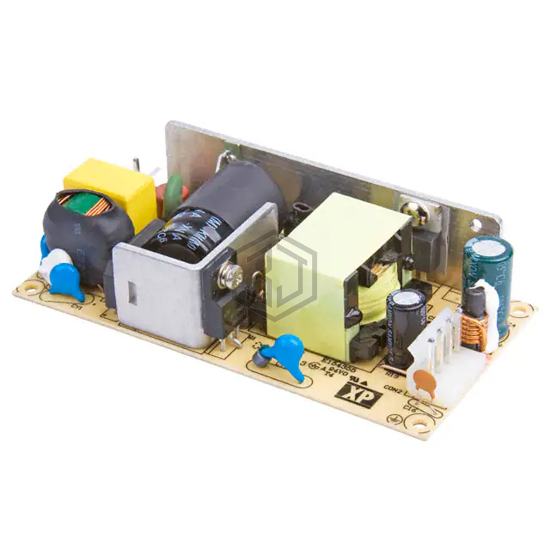

AC/DC CONVERTER 12V 60W
VCT60US12 is a AC DC Converters manufactured by XP Power. AC/DC CONVERTER 12V 60W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 70°C (With Derating), voltage - input 85 ~ 264 VAC, size / dimension 4.00" L x 2.00" W x 0.84" H (101.6mm x 50.8mm x 21.6mm).
In Stock: 1,027
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 5 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 60W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 87% |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.00" L x 2.00" W x 0.84" H (101.6mm x 50.8mm x 21.6mm) |
| Approval Agency | - |
| Standard Number | 62368-1 |
Submit your RFQ for VCT60US12 and get a quote within 24 hours.
