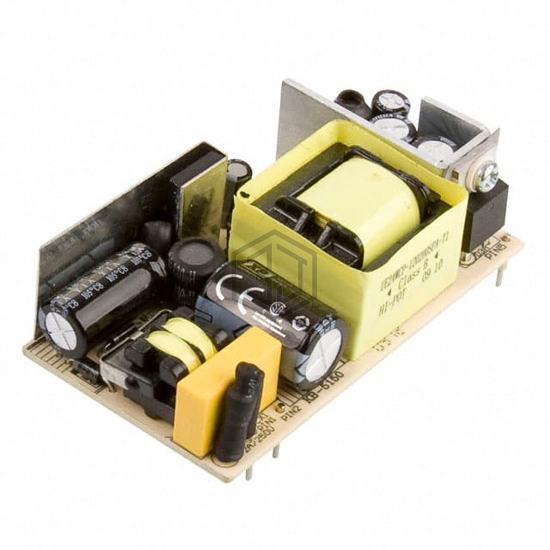

AC/DC CONVERTER 24V 24W
VCP24US24 is a AC DC Converters manufactured by XP Power. AC/DC CONVERTER 24V 24W. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, package / case 5-DIP Module.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1A |
| Power (Watts) | 24 W |
| Applications | ITE (Commercial), Medical |
| Features | Universal Input |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Efficiency | 82% |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module |
| Size / Dimension | 2.91" L x 1.64" W x 0.98" H (73.8mm x 41.6mm x 24.8mm) |
| Approval Agency | cUL, IEC, EN |
| Standard Number | 60601-1; 60950-1 |
