AC/DC CONVERTER 48V 39W

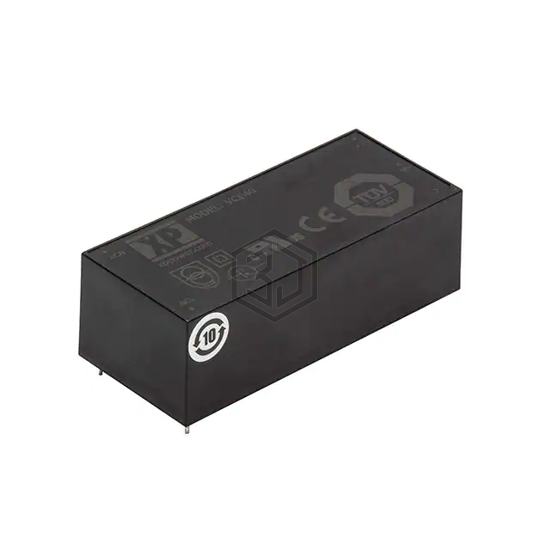

VCE40US48 is a AC DC Converters manufactured by XP Power. AC/DC CONVERTER 48V 39W. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 70°C (With Derating), voltage - input 85 ~ 305 VAC, package / case 4-DIP Module.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 305 VAC |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 820mA |
| Power (Watts) | 39 W |
| Applications | Household Appliances, ITE (Commercial) |
| Features | - |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Efficiency | 85% |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP Module |
| Size / Dimension | 3.46" L x 1.50" W x 1.12" H (87.9mm x 38.1mm x 28.5mm) |
| Approval Agency | CB, TUV, UL |
| Standard Number | 62368-1 |
