DC DC CONVERTER 9V

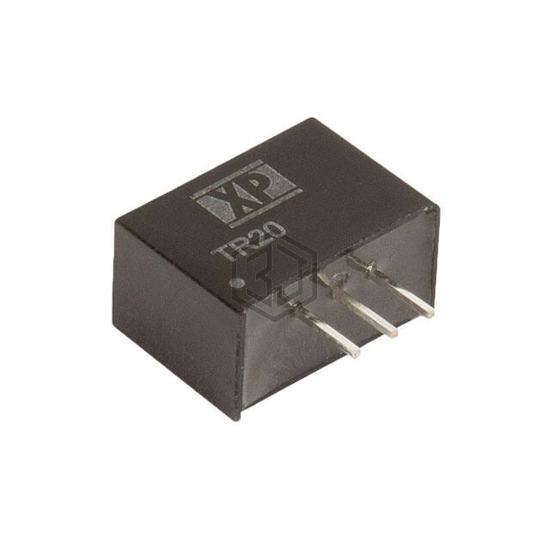

TR2024S09 is a DC DC Converters manufactured by XP Power. DC DC CONVERTER 9V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C (With Derating), package / case 3-SIP Module, current - output (max) 2A.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 12V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2A |
| Power (Watts) | - |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Efficiency | 95% |
| Mounting Type | Through Hole |
| Package / Case | 3-SIP Module |
| Size / Dimension | 0.55" L x 0.30" W x 0.40" H (14.0mm x 7.5mm x 10.1mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, TUV, UL |
| Standard Number | - |
