DC DC CONVERTER 2.5V

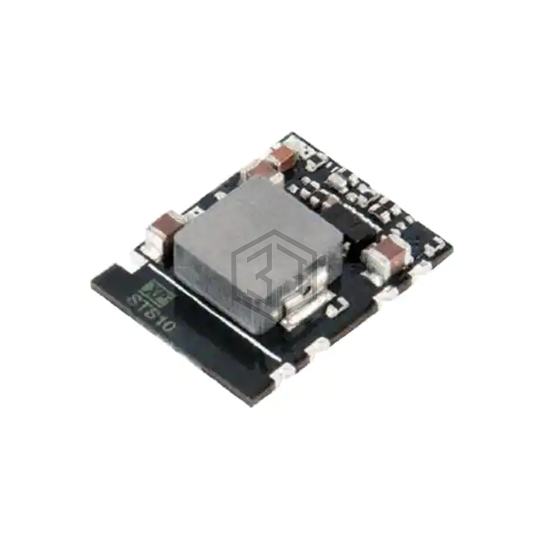

STS1005S2V5 is a DC DC Converters manufactured by XP Power. DC DC CONVERTER 2.5V. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (With Derating), package / case 10-SMD Module, 6 Leads, current - output (max) 1A.
In Stock: 28
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.8V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 2.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1A |
| Power (Watts) | - |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, SCP |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 94.5% |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD Module, 6 Leads |
| Size / Dimension | 0.60" L x 0.46" W x 0.14" H (15.2mm x 11.8mm x 3.6mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for STS1005S2V5 and get a quote within 24 hours.
