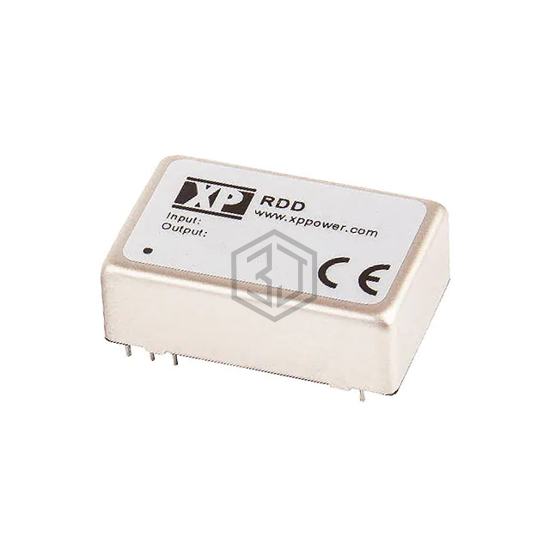

DC DC CONVERTER 5V 8W
RDD0824S05 is a DC DC Converters manufactured by XP Power. DC DC CONVERTER 5V 8W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 24-DIP Module, 8 Leads, current - output (max) 1.6A.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 13V |
| Voltage - Input (Max) | 70V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.6A |
| Power (Watts) | 8 W |
| Voltage - Isolation | 3 kV |
| Applications | Railway |
| Features | Remote On/Off, OCP, OVP, SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 86% |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 8 Leads |
| Size / Dimension | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for RDD0824S05 and get a quote within 24 hours.
