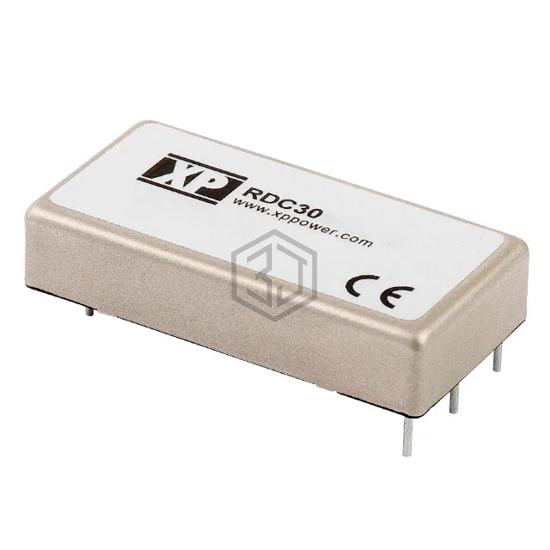

DC DC CONVERTER 5V +/-12V 30W
RDC3072T0512 is a DC DC Converters manufactured by XP Power. DC DC CONVERTER 5V +/-12V 30W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 75°C, package / case 7-DIP Module, current - output (max) 4A, 420mA, 420mA.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 3 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 140V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | -12V |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4A, 420mA, 420mA |
| Power (Watts) | 30 W |
| Voltage - Isolation | 1.5 kV |
| Applications | Railway |
| Features | Remote On/Off, OCP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 75°C |
| Efficiency | 90% |
| Mounting Type | Through Hole |
| Package / Case | 7-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | 62368-1 |
Submit your RFQ for RDC3072T0512 and get a quote within 24 hours.
